Cable Seals

Cable Seals

TOUGH CONDITIONS RESISTANT
HIGH SECURITY AND
ISO 17712:2010 COMPLIANT

These seals were especially produced for situations when high resistance is required. The cable seals can withstand very low and high temperatures, such as -40ºC or 110ºC and severe environmental conditions. They can be personalized with letters or logo and laser marked numbering.

Application:

• Containers
• Trucks
• Measurement instruments
• Rail cars
• Value transportation
• Doors
• Drums

Features:

• All-purpose
• Adjustable size (Aluminum and Safelock)
• Metallic locking mechanism
• Personalization available

CABLE SEALS

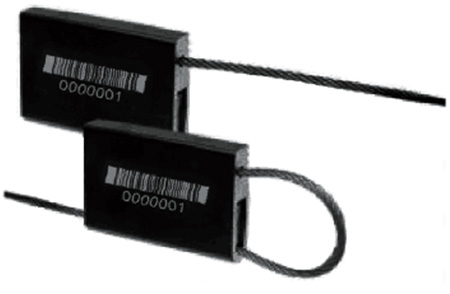

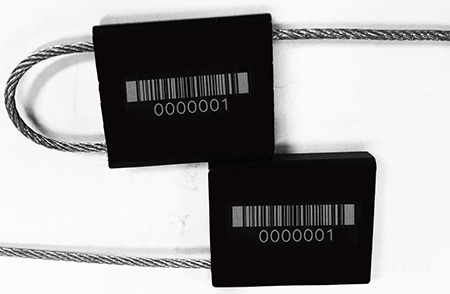

Aluminum Cable Seal

Metallic seal in an anodized aluminum with a stainless steel locking system, and a seven-strand stainless steel wire, with 1.5mm of diameter and variable sizes according to the clients’ requirements. Please, consult us on other sizes. Tensile strength: 250kgf.

Aluminum Cable Seal 1.5 # XAU04BK

 - It features a locking cable in a seven-strand galvanized wire that unravels if cut, what prevents its reconstruction. Laser marked personalization and alphanumeric code on this seal, measuring 30cm of length and 1.5mm (1/16") of diameter. Barcode is optional.

How-to-Use Price

Aluminum Cable Seal 1.5 ST # XAU05BK

 – It features a locking cable in a seven-strand stainless steel wire that unravels if cut, what prevents its reconstruction. Laser marked personalization and alphanumeric code on this seal, measuring 30cm of length and 1.5mm (1/16") of diameter. Barcode is optional.

How-to-Use Price

Aluminum Cable Seal 3.5 # XAU3412

 - It features a locking cable in a seven-strand galvanized wire that unravels if cut, what prevents its reconstruction. Laser marked personalization and alphanumeric code on this seal, measuring 30cm of length and 3.5mm (1/8") of diameter. Barcode is optional.

How-to-Use Price

Safelock M Cable Seal

Metallic seal in polycarbonate, with a locking mechanism in zamac and a sealing cable in stainless steel wire or in a seven-strand galvanized wire, measuring 1.6mm in diameter and variable according to the clients’ needs. Tensile strength: 227 daN.

Safelock M SLM  # 072SLM1520STPC

- It features a seven-strand sealing cable that unravels when cut, what prevents its reconstruction, measuring 20cm in length and 1.5mm in diameter. Laser marked personalization and laser marked alphanumeric code. Barcode is optional. (#072B11520STPC).

How-to-Use Price

Safelock M SLM  # 072SLM1520GVPC

- It features a seven-strand sealing cable that unravels when cut, what prevents its reconstruction, measuring 20cm in length and 1.5mm in diameter. Laser marked personalization and alphanumeric code. Barcode is optional. (#072B11520GVPC).

How-to-Use Price

Aluminum Lite Seal

Metallic seal, with its body in anodized aluminum and a closing system in zamac. The sealing thread is made of nylon, with a diameter of 1,5mm and it is available in different sizes, according to the client’s needs. Minimum tensile strength of 60 daN.

Aluminum SLM NY Security Seal #XALSLMNY1520

 – Metallic seal, with its body in anodized aluminum and a closing system in zamac. The sealing thread is made of nylon, with a diameter of 1,5mm and it is available in different sizes, according to the client’s needs. Minimum tensile strength of 60 daN. Optional: seals with barcode (#XALB1NY1520).

How-to-Use Price

Ordering:

SPECIFICATION
